RENO-HWR2-DV-MW-MCCT-MS-ECO(2FT)
RENO-HWR2-DV-MW-MCCT-MS-ECO(2FT)
ORDER NO #
R38006
SERIES:
HELIOS

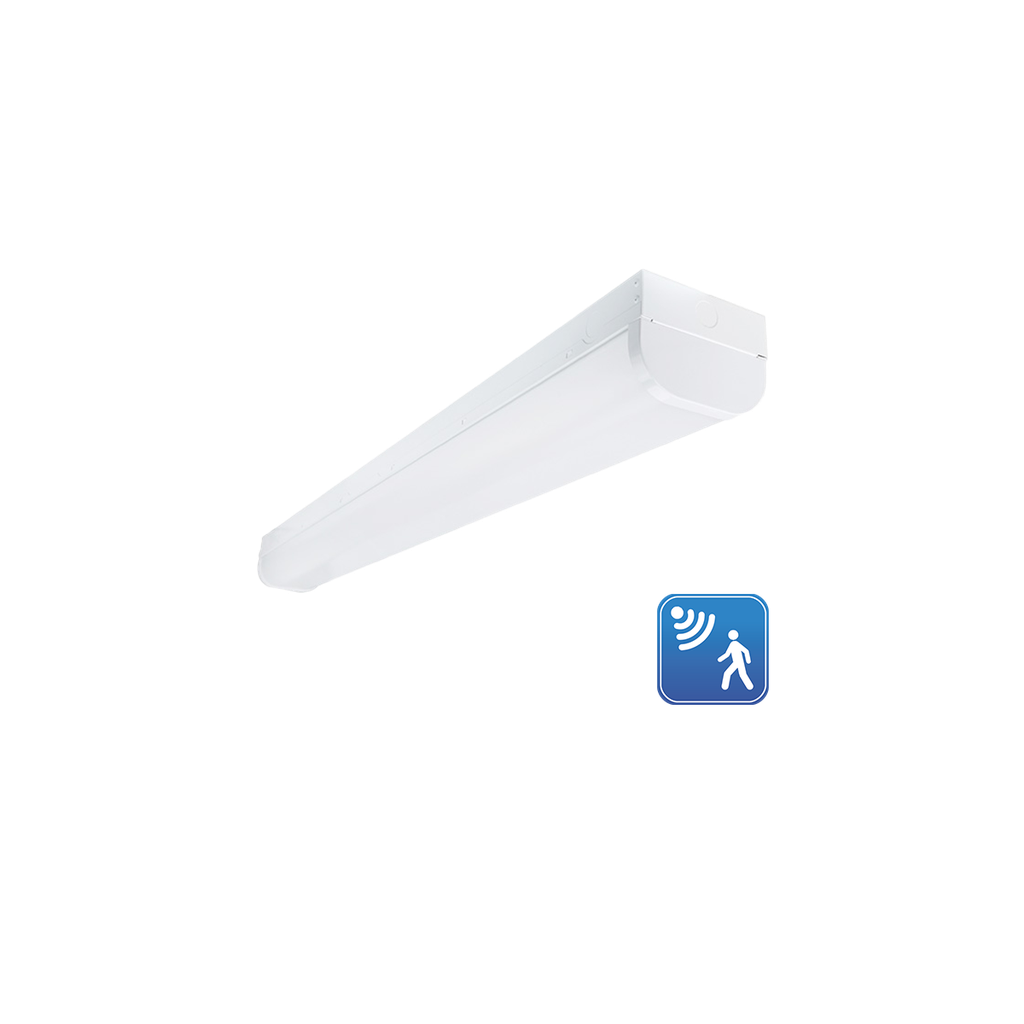

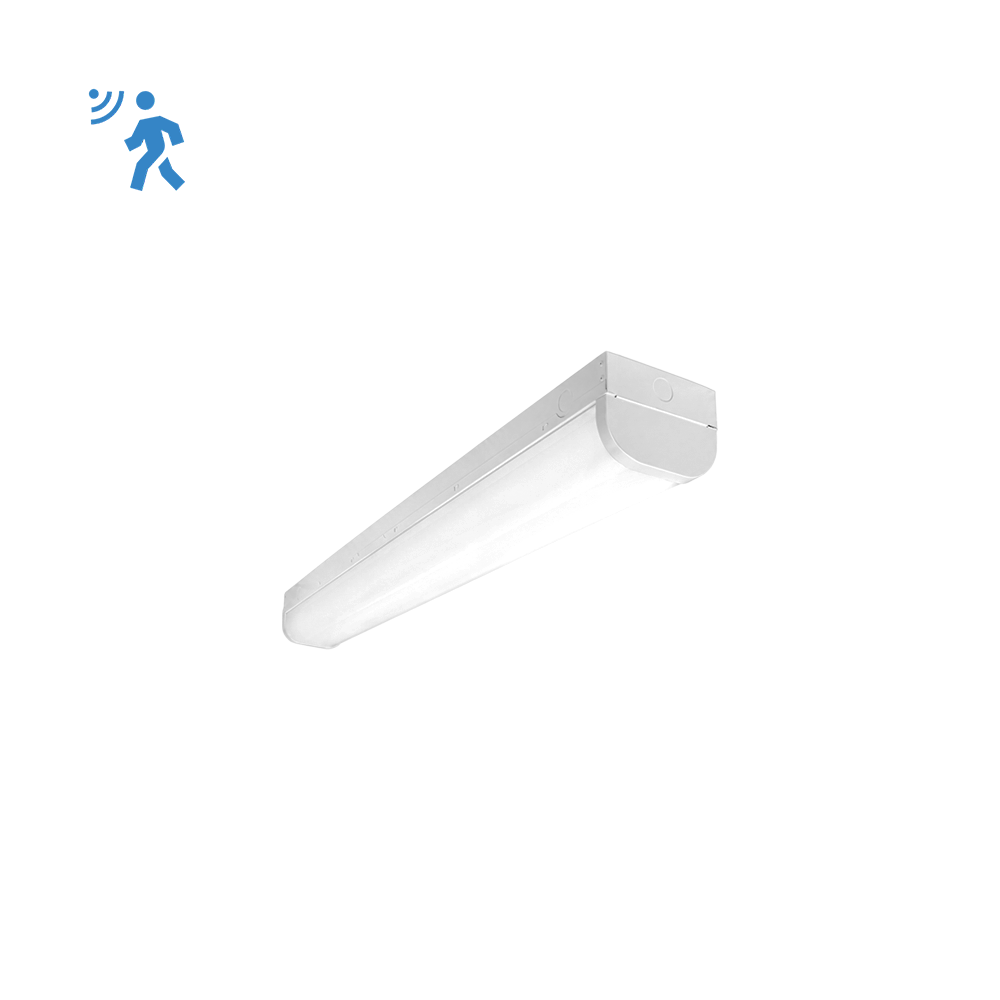

2FT ECO WRAP AROUND FIXTURE with Integrated Microwave Sensor | Selectable Wattage 15/20/25/30W | Selectable CCT 3500/4000/5000K | 120-347V | White Finish | Factory Default Setting: Dim to 30% after 5 minutes **Must purchase a remote to configure sensor settings**
Specifications
| Reno Collection |
ECO
|
| Size |
2ft
|
| Power (W) |
15/20/25/30W
|
| Efficacy |
Up to 148.4 lm/W
|
| Lumens |
1,950/2,600/ 3,250 lm
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
120°
|
| Operating Temperature |
-22°F to +122°F (-30°C to +50°C)
|
| Dimmable |
0-10V
|
| Lifespan (Hours) |
70,000hrs
|
| Finish |
White
|
| DLC Standard: Direct Linear Ambient Luminaires |
S-KGQD97
|

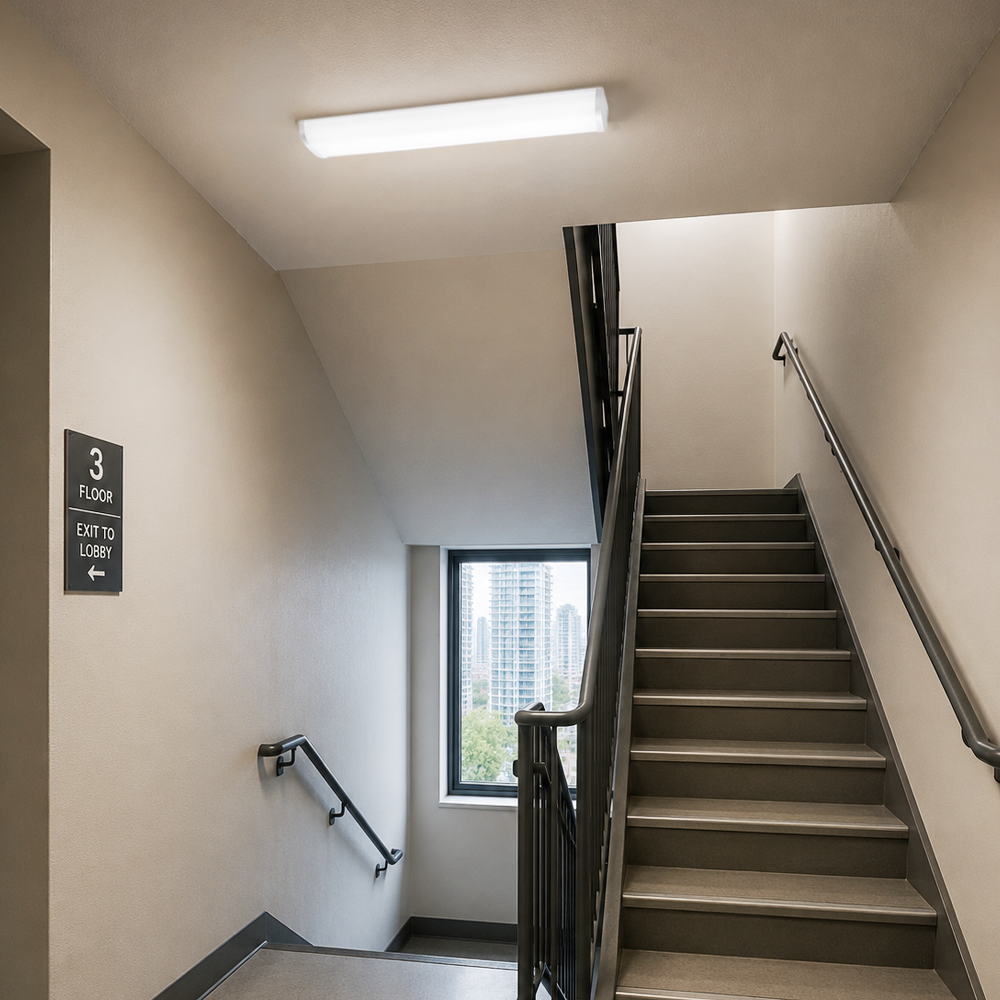

| DLC Premium: Stairwell and Passageway |
S-CSQ3M9
|
| Box QTY |
4
|
| Shipping Dimensions |
Master Case: 25.5"x12"x9.5" - 12lbs Single Box: 24.5"x5.5"x4" - 3lbs
|
