RENO-HWR4-DV-MW-MCCT-MS
RENO-HWR4-DV-MW-MCCT-MS
ORDER NO #
R38004
SERIES:
HELIOS

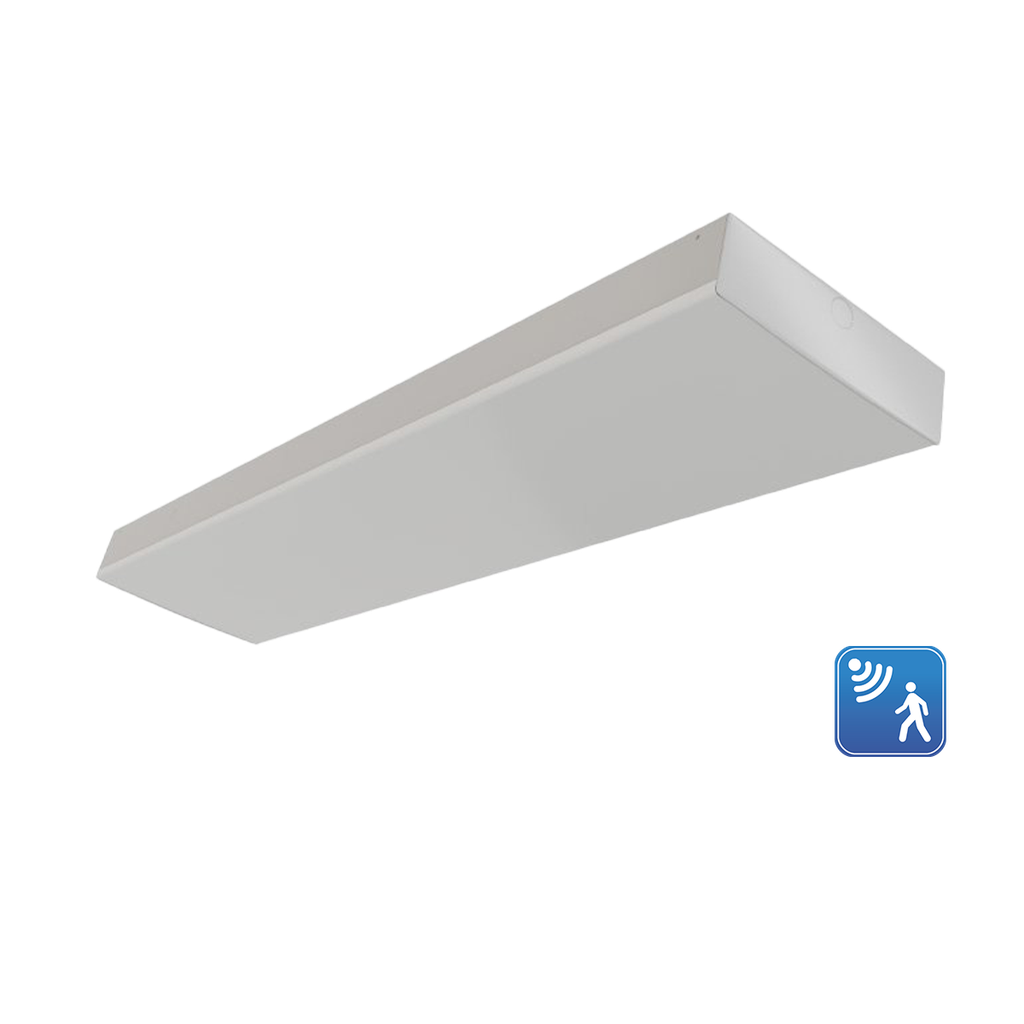

4FT WRAP AROUND FIXTURE with Integrated Microwave Sensor | Selectable Wattage 22/28/36/44W | Selectable CCT 3500/4000/5000K | 120-347V | White Finish | Factory Default Setting: Dim to 30% after 5 minutes **Must purchase a remote to configure sensor settings**
Specifications
| Reno Collection |
PRIME
|
| Size |
4ft
|
| Power (W) |
22/28/36/44W
|
| Efficacy |
Up to 135lm/W
|
| Lumens |
2,860/3,640/4,420/5,720lm
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
120°
|
| Operating Temperature |
-22°F to +122°F (-30°C to +50°C)
|
| Dimmable |
0-10V
|
| Lifespan (Hours) |
70,000hrs
|
| Finish |
White
|
| DLC Premium: Stairwell and Passageway |
S-YFJE0I
|
| Box QTY |
4
|
| Shipping Dimensions |
Master Case: 49"x16"x6.5" - 13lbs Single Box: 48.25"x7.5"x3" - 3lbs
|
