RENO-HWR2-DV-MW-MCCT
RENO-HWR2-DV-MW-MCCT
ORDER NO #
R38001
SERIES:
HELIOS

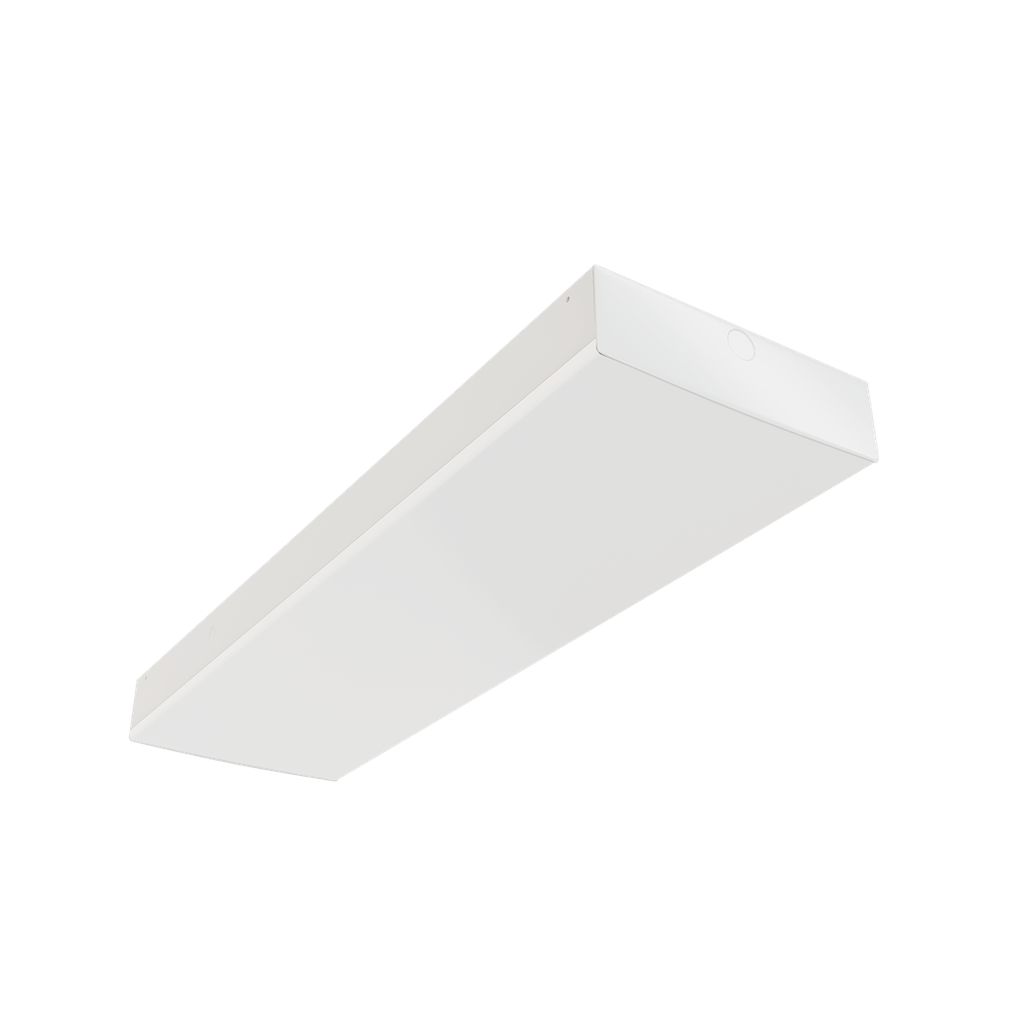

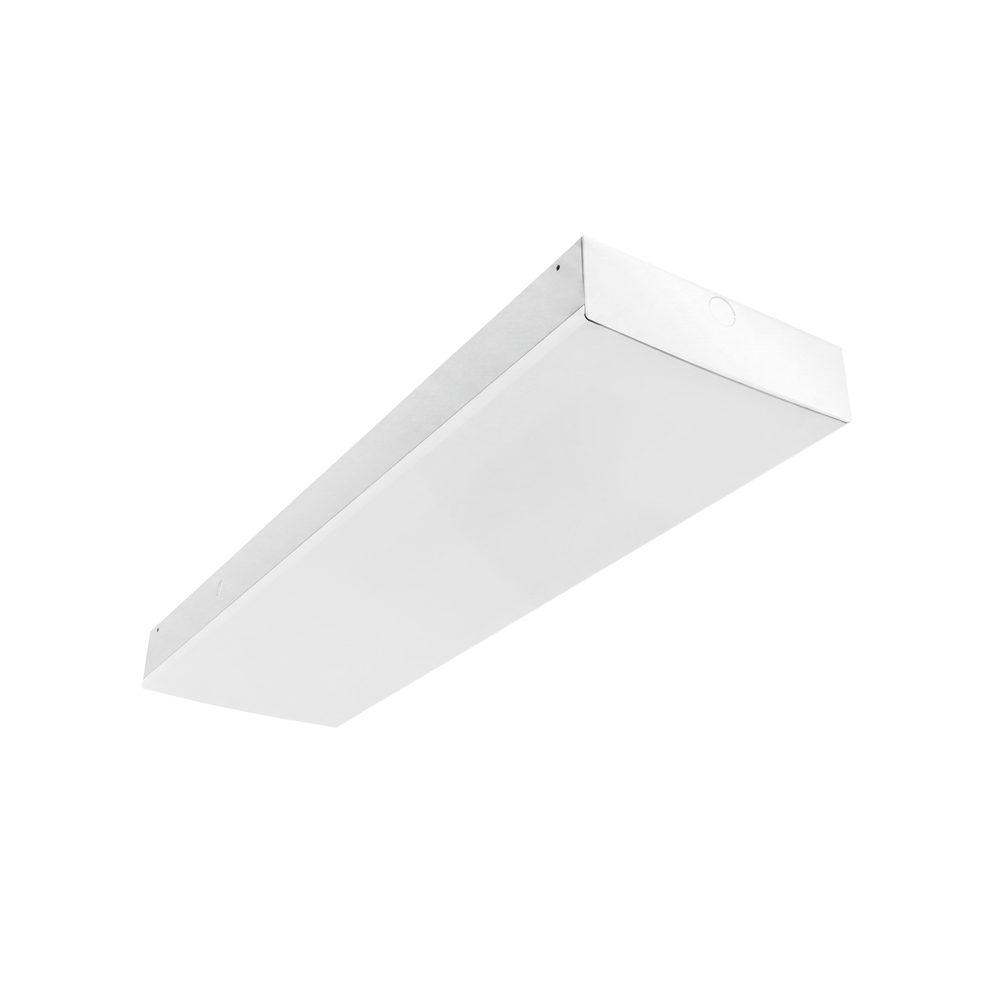

2FT WRAP AROUND FIXTURE | Selectable Wattage 12/15/18/22W | Selectable CCT 3500/4000/5000K | 120-347V | White Finish |
Specifications
| Reno Collection |
PRIME
|
| Size |
2ft
|
| Power (W) |
12/15/18/22W
|
| Efficacy |
Up to 135lm/W
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
120°
|
| Operating Temperature |
-22°F to +122°F (-30°C to +50°C)
|
| Dimmable |
0-10V
|
| Lifespan (Hours) |
100,000hrs
|
| Finish |
White
|

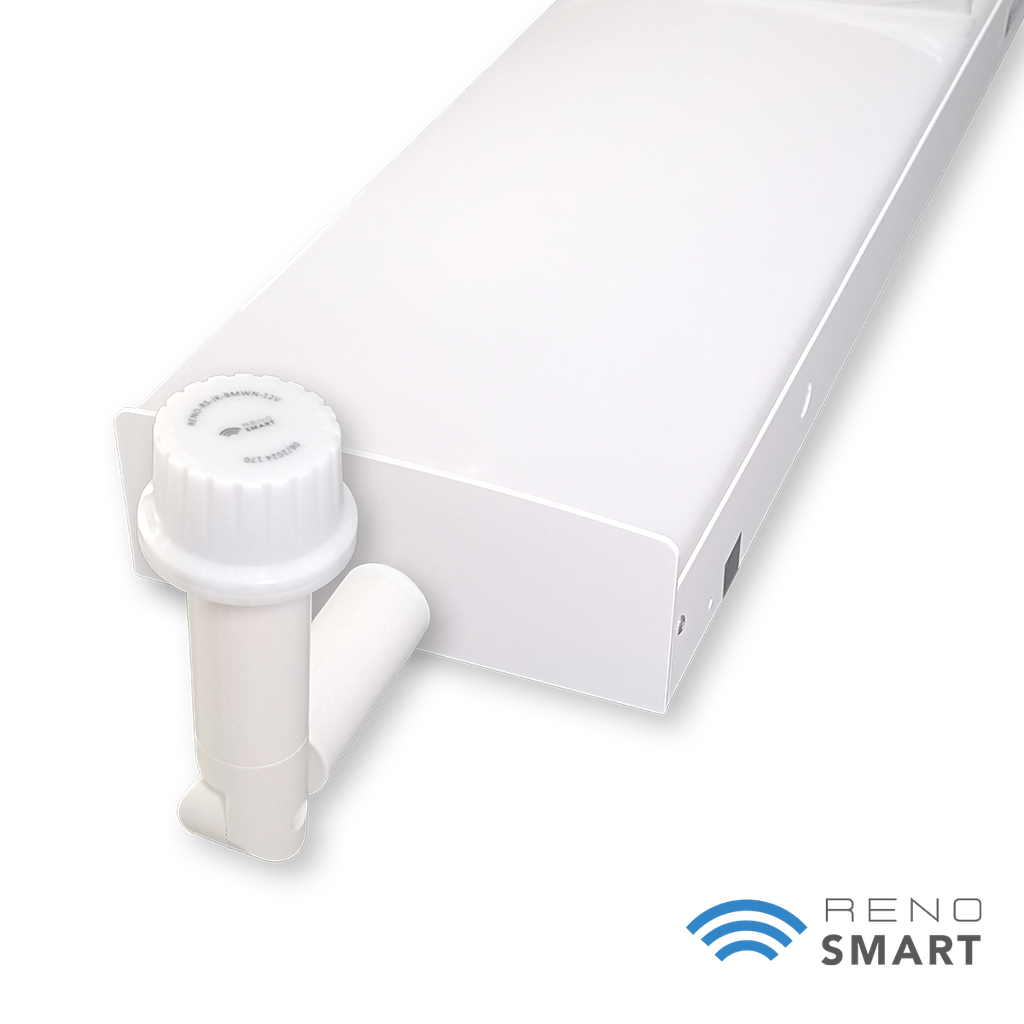

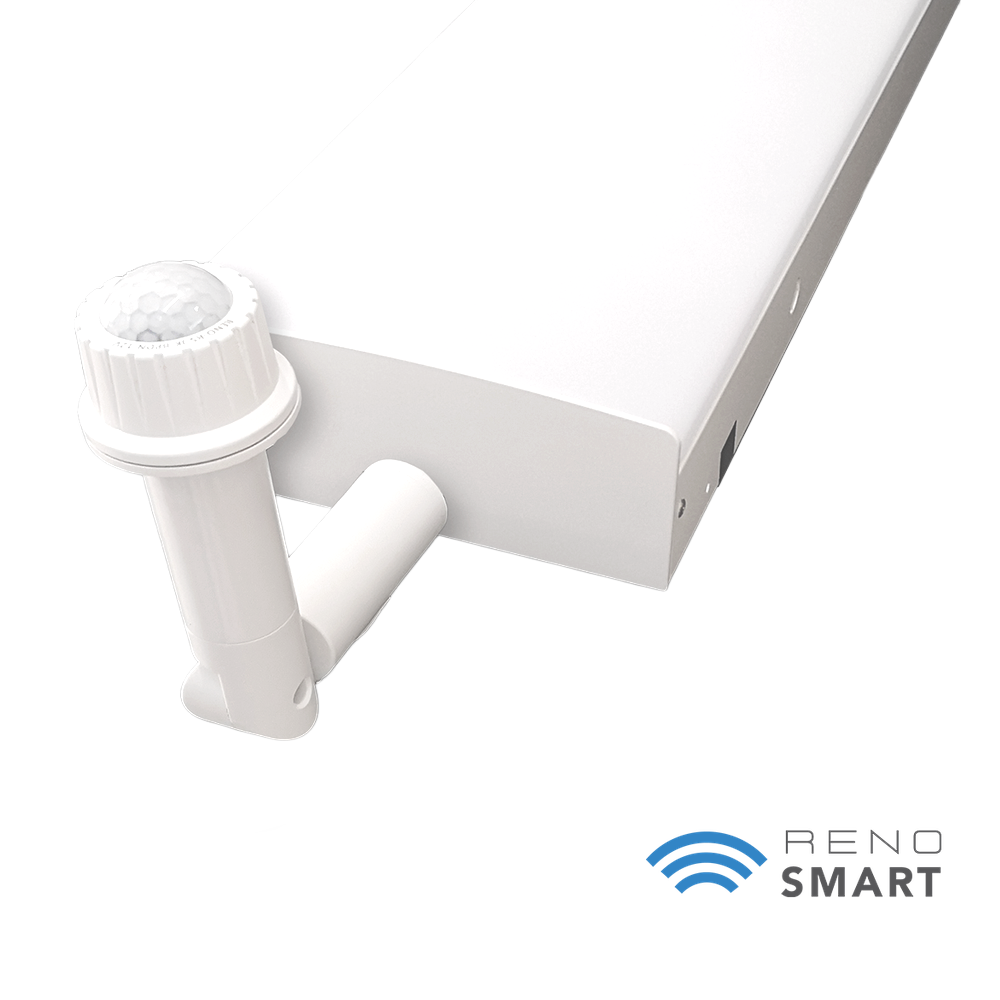

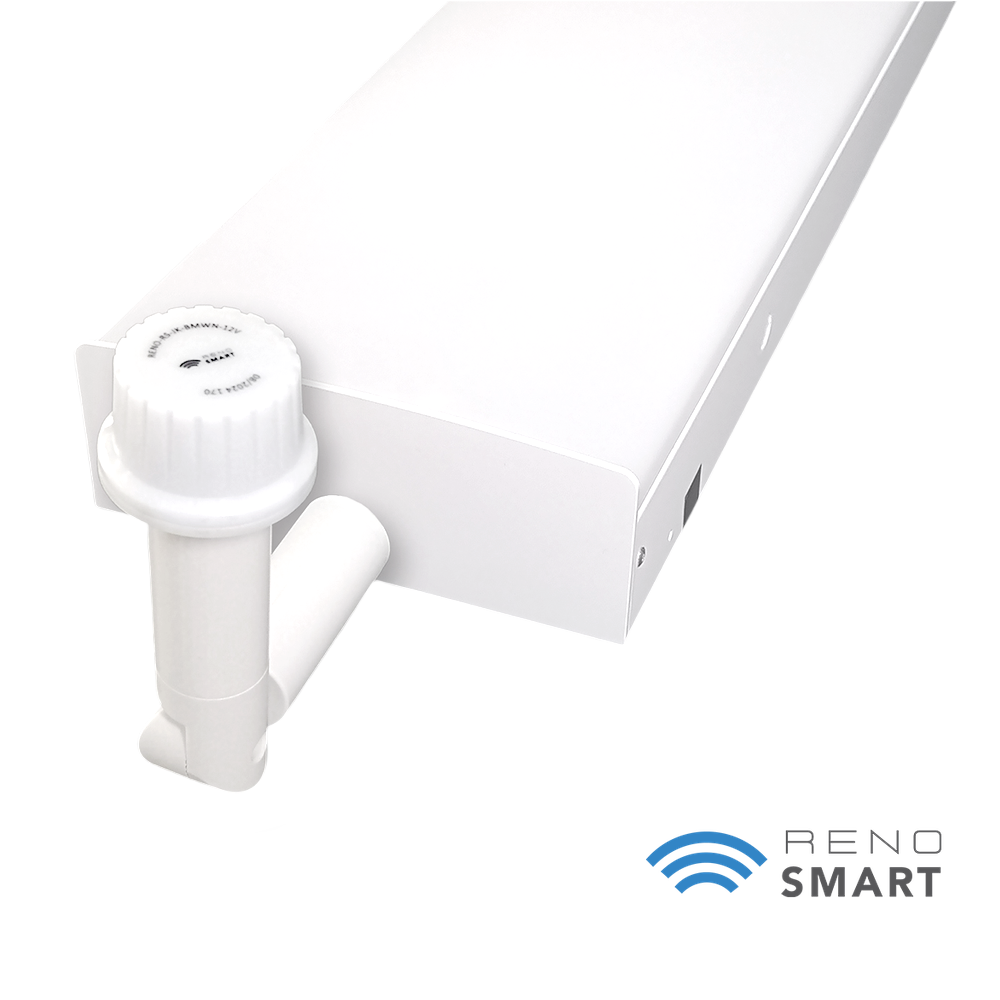

| RENO Smart Compatible |
Yes
|
| DLC Standard: Direct Linear Ambient Luminaires |
S-ONSG41
|
| Box QTY |
6
|
| Shipping Dimensions |
Master Case: 25"x15.5"x7" - 15lbs Single Box: 24.5"x7.5"x3" - 2lbs
|
