RENO-24CTF-UNV/347-MWMCCT
RENO-24CTF-UNV/347-MWMCCT
ORDER NO #
R37006
SERIES:
PRISM

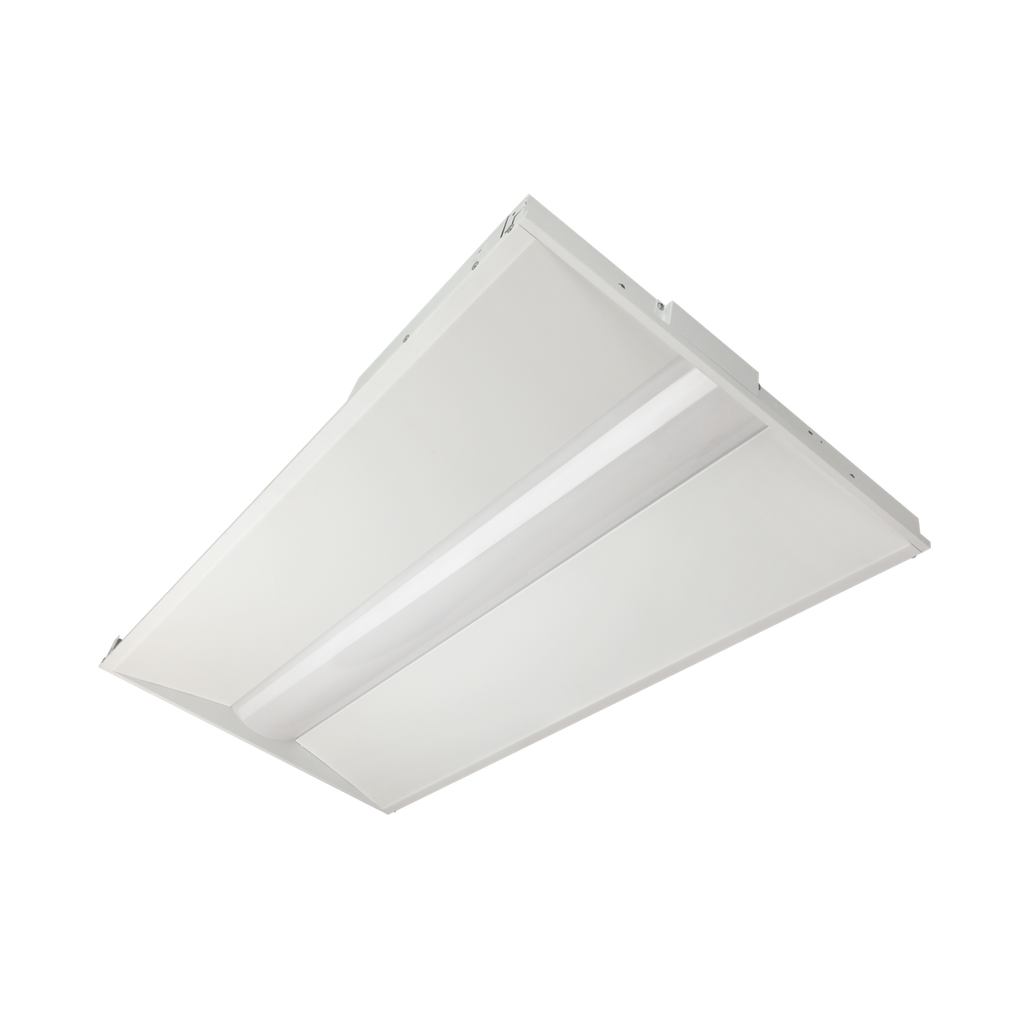

2x4 CENTER BASKET TROFFER | Selectable Wattage 29/34/39/49W | Up to 130 lm/W | Selectable CCT 3500/4000/5000K | 120-347V | White Finish |
Specifications
| Reno Collection |
PRIME
|
| Size |
2x4
|
| Power (W) |
29/34/39/49W
|
| Efficacy |
130lm/W
|
| Lumens |
3,770/4,420/5,070/6,370lm
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
110°
|
| Operating Temperature |
-4°F to +122°F (-20°C to +50°C)
|
| Dimmable |
0-10V
|
| Finish |
White
|
| Lifespan (Hours) |
50,000hrs
|
| RENO Smart Compatible |
Yes
|
| DLC Premium: Luminaires for Ambient Lighting |
S-BUSJFQ
|
| DLC Premium: Low-Bay Luminaires |
S-M8S98Z
|
| Box QTY |
1
|
| Shipping Dimensions |
49.5" x 24.5" x 2.5" - 6lbs
|
