RENO-24BLPL-UNV/347-MWMCCT-HL
RENO-24BLPL-UNV/347-MWMCCT-HL
ORDER NO #
R35106
SERIES:
AIM

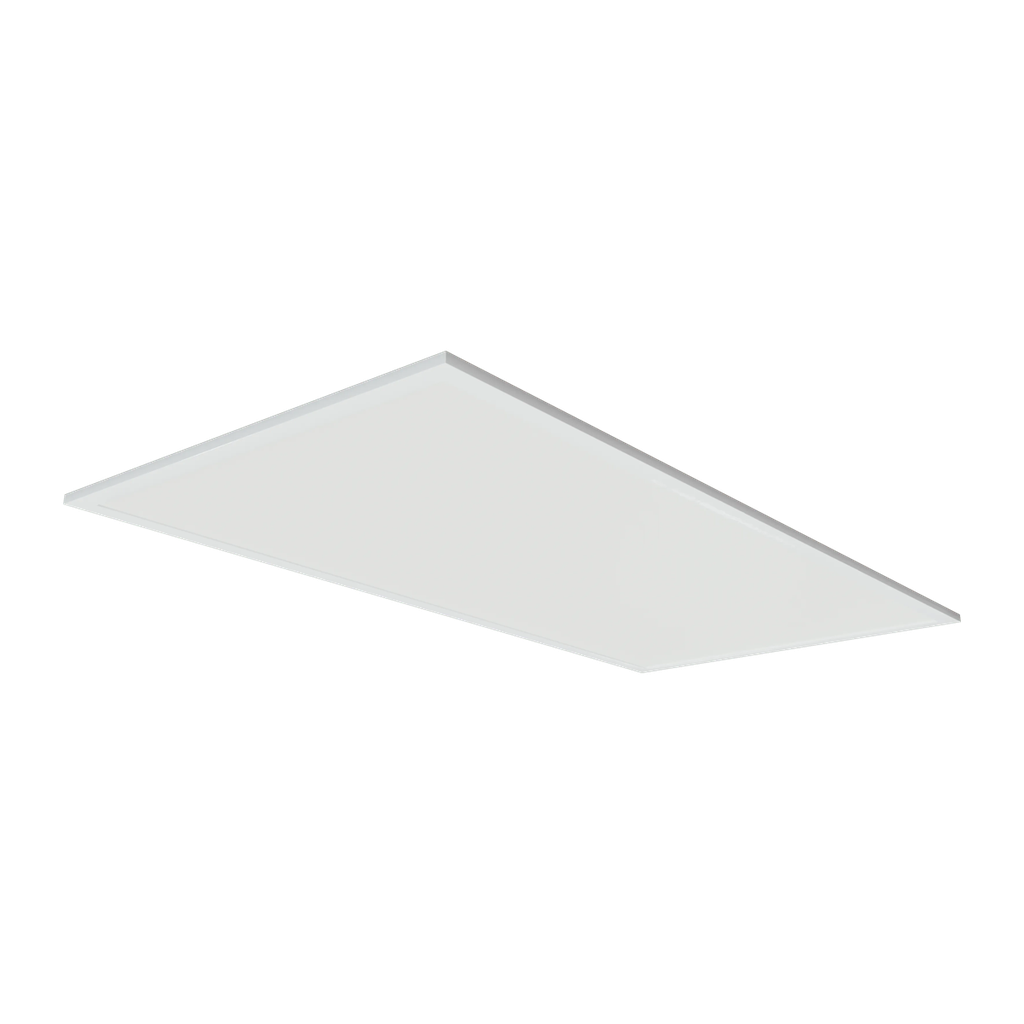

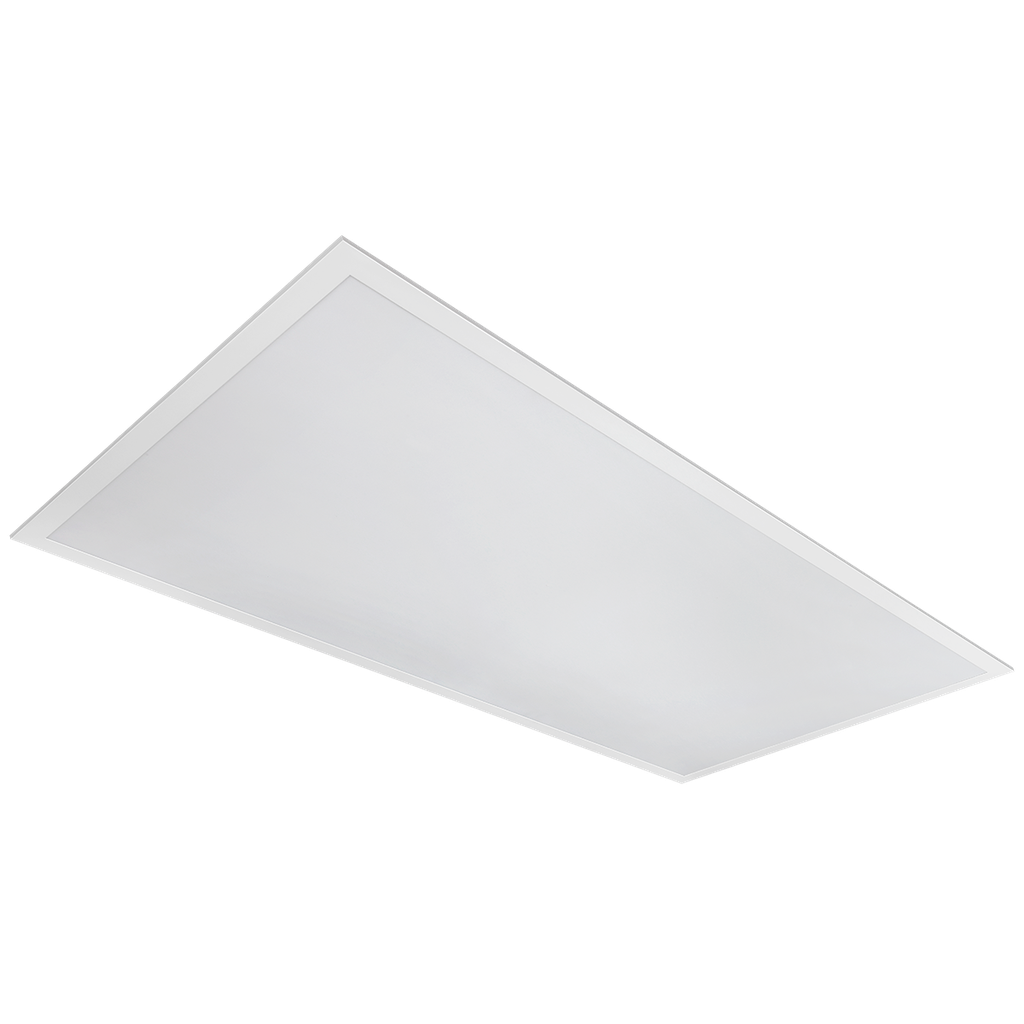

2X4 PRIME Back-Lit Panel | Selectable Wattage 30/40/50/60W | Selectable CCT 3500/4000/5000K | Up to 133 lm/W | 120-347V |
Specifications
| Reno Collection |
PRIME
|
| Size |
2x4
|
| Power (W) |
30/40/50/60W
|
| Efficacy |
Up to 133lm/W
|
| Color Temperature (K) |
35/40/5000K
|
| Voltage (V) |
120-347V
|
| CRI |
>80
|
| Beam Angle (Degree) |
125°
|
| Operating Temperature |
-4°F to +122°F (-20°C to +50°C)
|
| Dimmable |
0-10V
|
| Lifespan (Hours) |
100,000hrs
|
| Finish |
White
|
| DLC Premium: Direct Linear Ambient Luminaires |
S-VEJGTI
|
| DLC Premium: Low-Bay Luminaires |
S-TZQ2QX
|
| Box QTY |
2
|
| Shipping Dimensions |
49" x 24" x 3" - 10lbs
|
