Indoor Fixtures /
Flat Panels /
Premium Sensor-Ready Flat Panels

Premium Sensor-Ready Flat Panels

Size
Power (W)
Efficacy
Color Temperature (K)
Voltage (V)
CRI
Dimmable
RENO Smart Compatible
Finish
Sensor Technology
Detection Radius
Input Voltage
ORDER NO # R35311
RENO-14BLPL-UNV/347-MWMCCT-HL-MS
SERIES: AIM
Sensor-Ready 1X4 Back-Lit Panel | **DOES NOT INCLUDE SENSOR**

Choose from either RENO Smart Bluetooth PIR or Standalone PIR Sensor when ordering | Selectable Wattage 20/25/30/40W | Selectable CCT 3500/4000/5000K | Up to 133 lm/W | 120-347V
BrandDual voltage LOGO.png

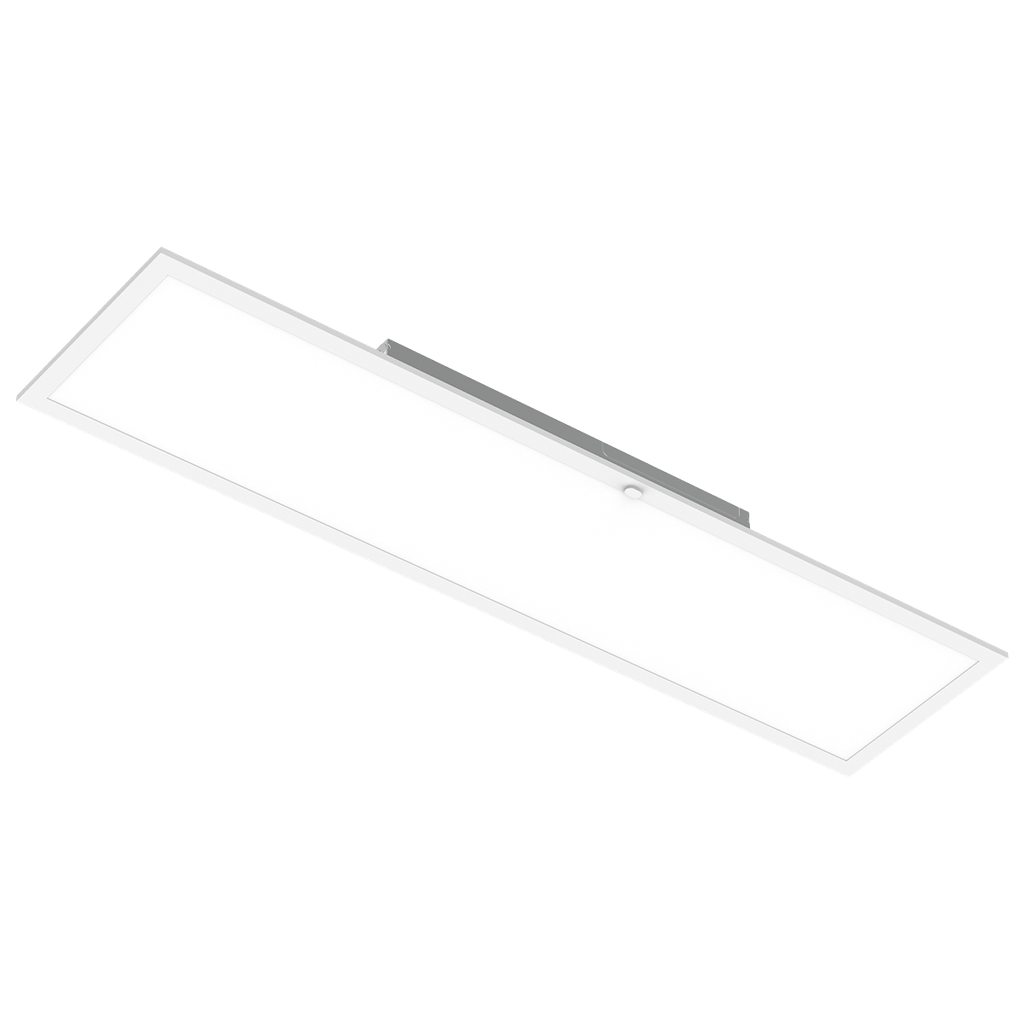

ORDER NO # R35321
RENO-14BLPL-DV-MW-MCCT-MS
SERIES: AIM
1X4 Back-Lit Panel with Sensor Compatibility | **Does Not Include Sensor**

Selectable Wattage 20/30/40W | Selectable CCT 3500/4000/5000K | Up to 133 lm/W | 120-347V
BrandDual voltage LOGO.png

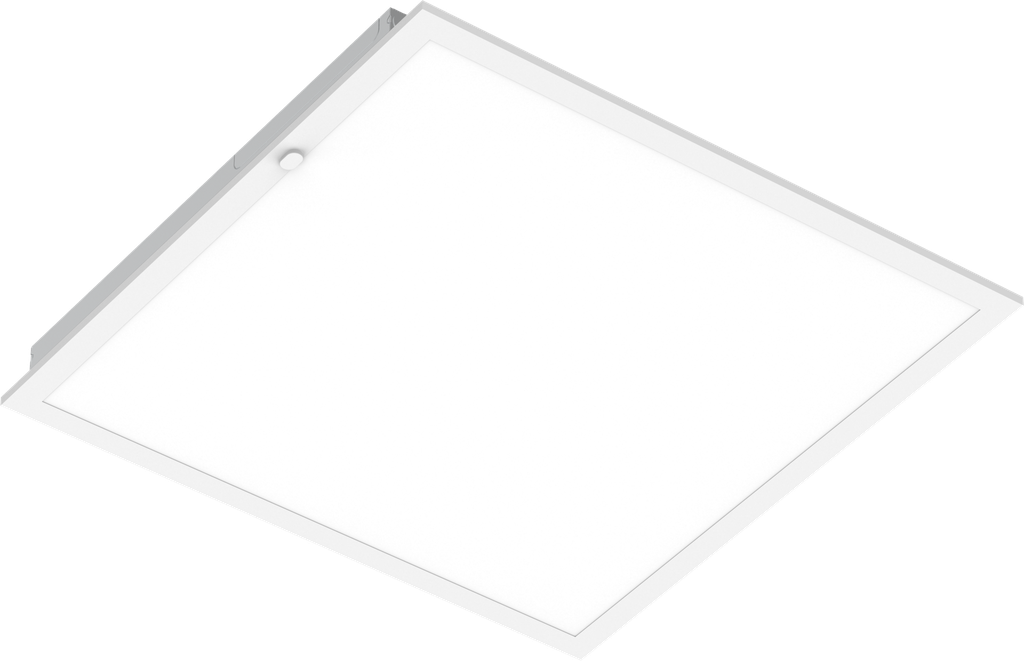

ORDER NO # R35322
RENO-22BLPL-DV-MW-MCCT-MS
SERIES: AIM
2X2 Back-Lit Panel with Sensor Compatibility | **does Not Include Sensor**

Selectable Wattage 20/30/40W | Selectable CCT 3500/4000/5000K | Up to 133 lm/W | 120-347V
BrandDual voltage LOGO.png

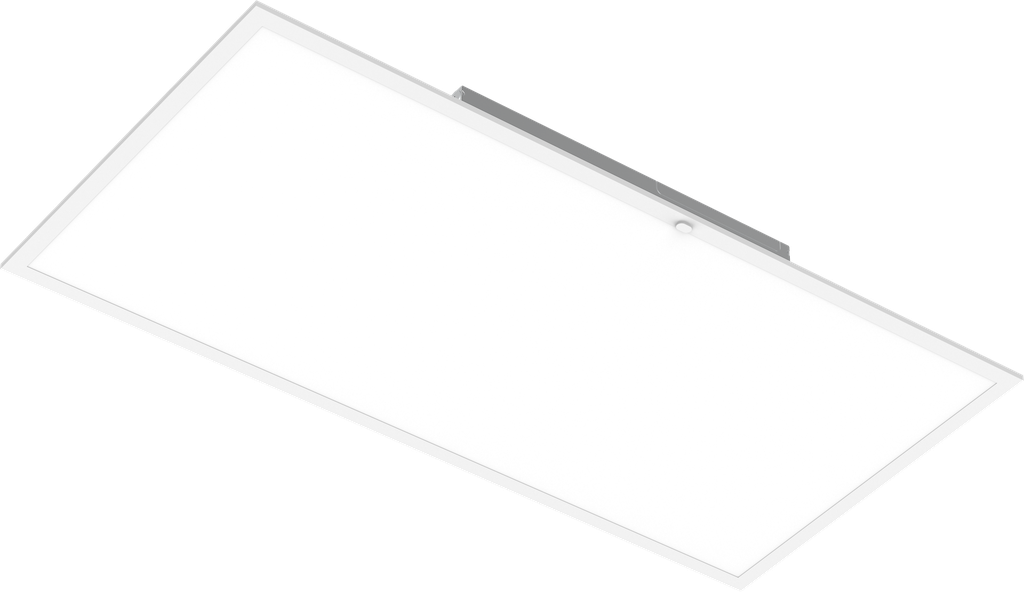

ORDER NO # R35323
RENO-24BLPL-DV-MW-MCCT-MS
SERIES: AIM
2X4 Back-Lit Panel with Sensor Compatibility | **Does Not Include Sensor**

Selectable Wattage 30/40/50W | Selectable CCT 3500/4000/5000K | Up to 133 lm/W | 120-347V
ORDER NO # R74006
RENO-SENSOR-PIR-2.5MM-H
SERIES:
PIR Sensor for the Sensor-Ready Flat Panels R35321 / R35322 / R35323

2.5MM Jack | 12VDC | Mounting Height 13ft | 20ft Detection Radius | Bi-level Dimmable, ON/OFF | Default Setting: Dim to 30% after 15 Mins
ORDER NO # R73002
RENO-REMOTE-H
SERIES:
Remote Control for Standalone Sensors (With Screen)

Note: Only 1 needed per project.
ORDER NO # R73005
RENO-REMOTE-H-ECO
SERIES:
Remote Control for Standalone sensors (Without Screen)

Note: Only 1 needed per project

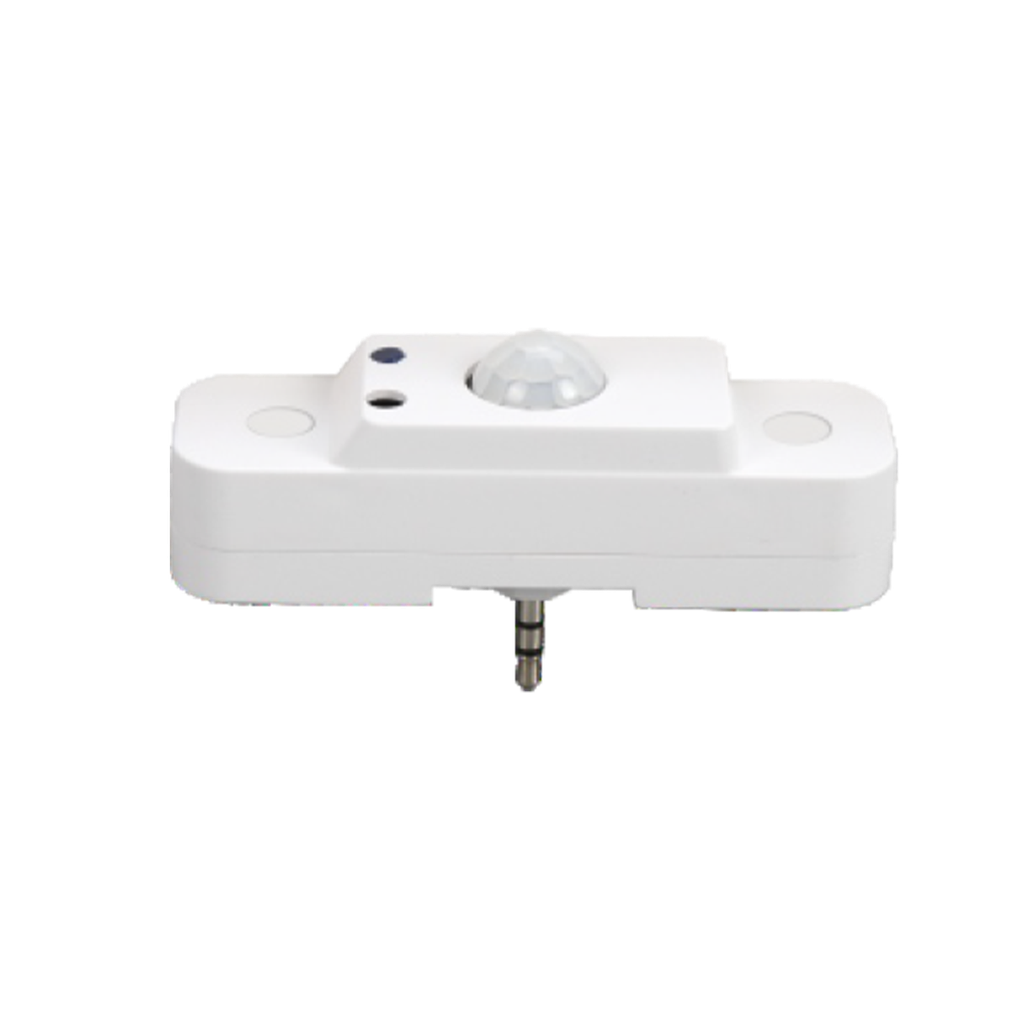

ORDER NO # R75005
RENO-RS-JK-2.5MM-PIR-12V
SERIES:
Bluetooth PIR sensor for the Sensor-Ready Flat Panels (R35321/R35322/R35323)

Jack Connector 2.5MM| Photocell or Daylight Harvesting optional on APP | Single channel | 12V input | 0-10V Dimming | **Requires Reno Smart App to configure Settings**
